Product details
Place of Origin:Hebei, China
Brand Name:QF

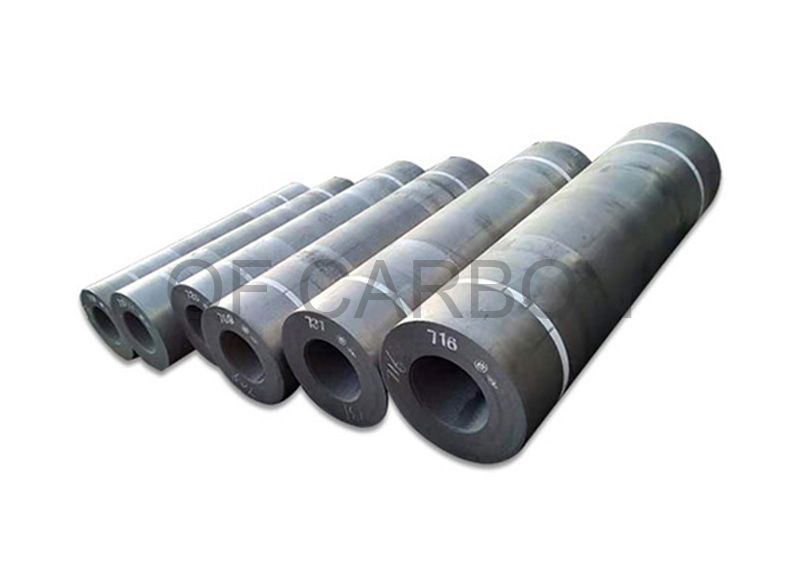

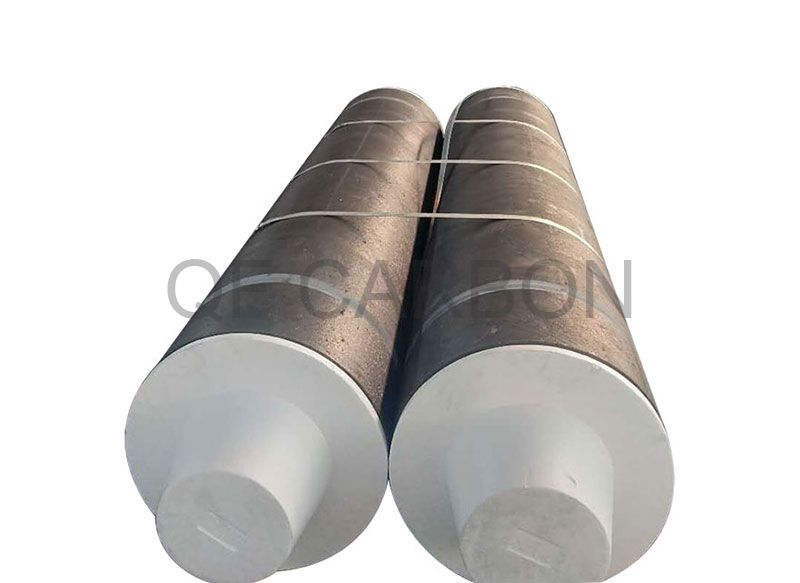

Model Number:Graphite electrode
Type:Electrode Block
Application:EAF, LF, STEEL MELTING
Length:1500-2400mm
Resistance (μΩ.m):5.5-6.5
Apparent Density (g/cm3 ):1.68-1.75 g/cm3
Thermal Expansion:2.3-2.1
Flexural Strength (N/2):16-20 Mpa
Elastic Modulus:≤ 14 GPa
Ash:≤ 0.2%
BULK DENSITY:1.52-1.65g/cm3
Needle Coke Content:60% of coke content
Consumption rate:≤ 2.0kg/ton steel
Material:Graphite electrode
Product parameters
1.Feature
Fine grain、High density and high mechanical strength、High thermal and chemical resistance、High resistance to thermal shock、Proper electrical conductivity.
2.Usage
Graphite electrodes are used mainly in ladle furnaces,electric-arc furnace steel making,Yellow phosphorus furnace , Industrial silicon furnace or melting copper. They are presently the only products available that have the high levels of electrical conductivity and the capability of sustaining the extremely high levels of heat generated in this demanding
environment.High Quality Needle Coke in HP&UHP graphite electrode,ensure the electrode application is perfect. Graphite electrodes are also used to refine steel in ladle furnaces and in other smelting processes.
3.Packing & Delivery

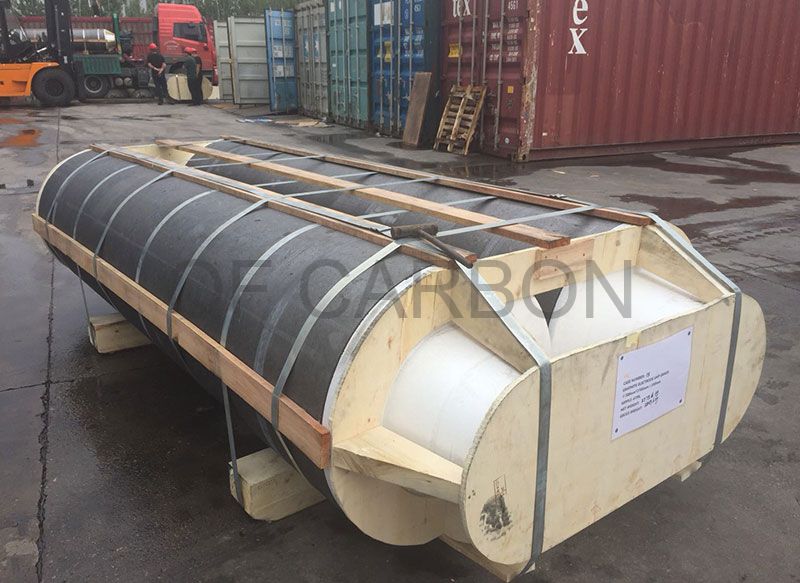

Packing Details: STANDARD PACKAGE IN PALLET.
Port: TIANJIN PORT
Lead Time:
| Quantity(Tons) | 1-20 | >20 |
| Est. Time(days) | 15 | To be negotiated |

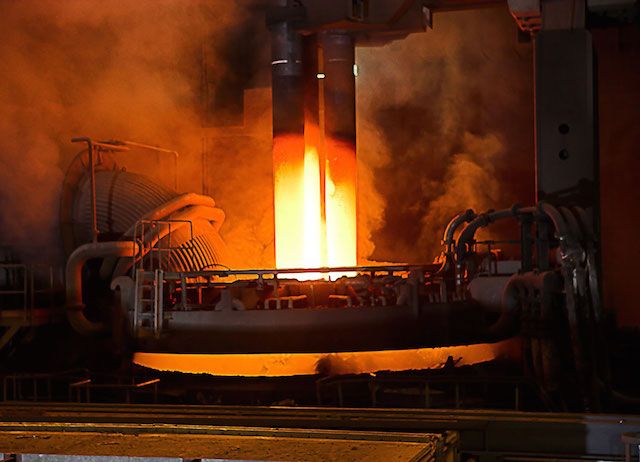

4.Product Application
Graphite electrodes are used mainly in ladle furnaces, electric-arc furnace steel making, Yellow phosphorus furnace , Industrial silicon furnace or melting copper. They are presently the only products available that have the high levels of electrical conductivity and the capability of sustaining the extremely high levels of heat generated in this demanding environment. High Quality Needle Coke in HP&UHP graphite electrode, ensure the electrode application is perfect. Graphite electrodes are also used to refine steel in ladle furnaces and in other smelting processes.
